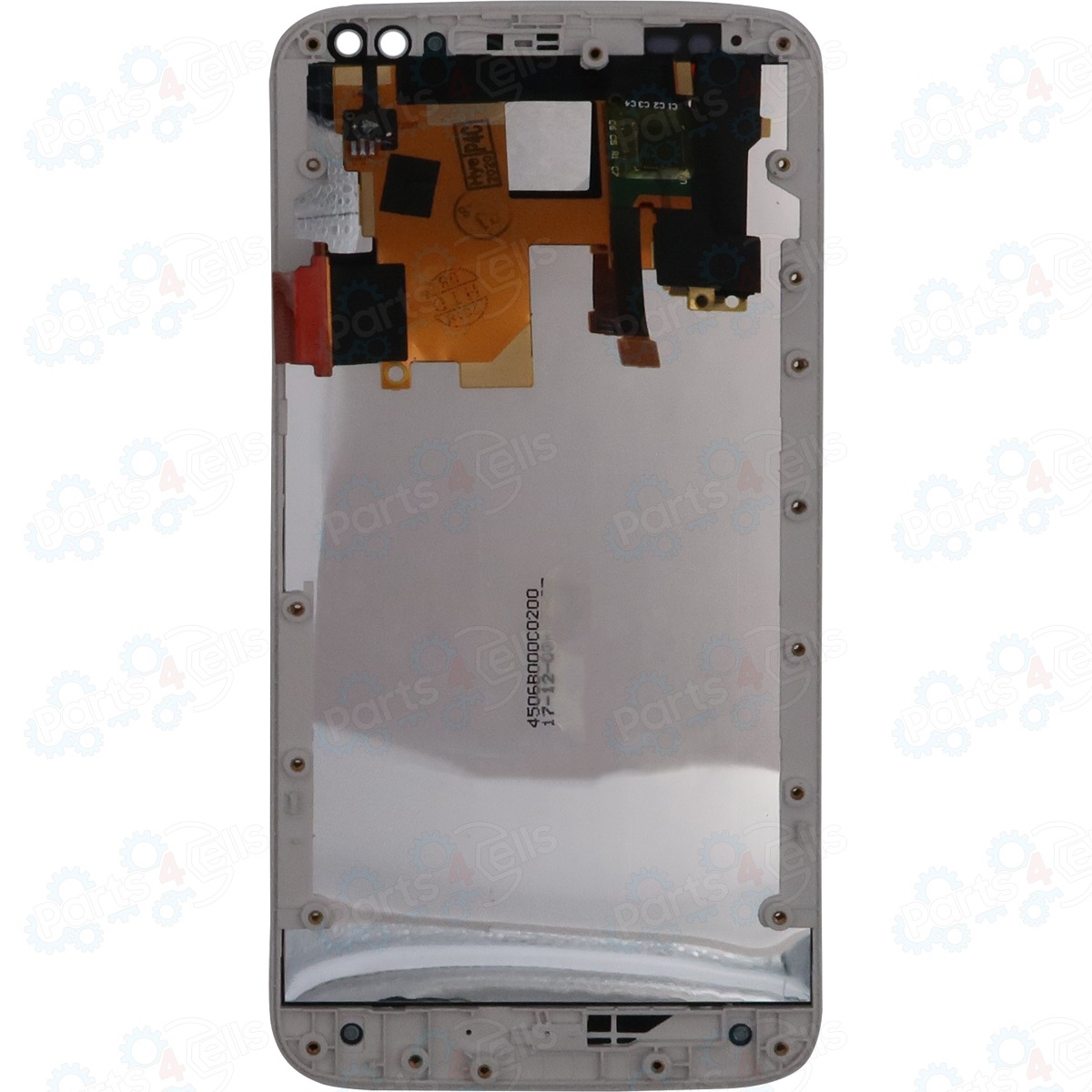

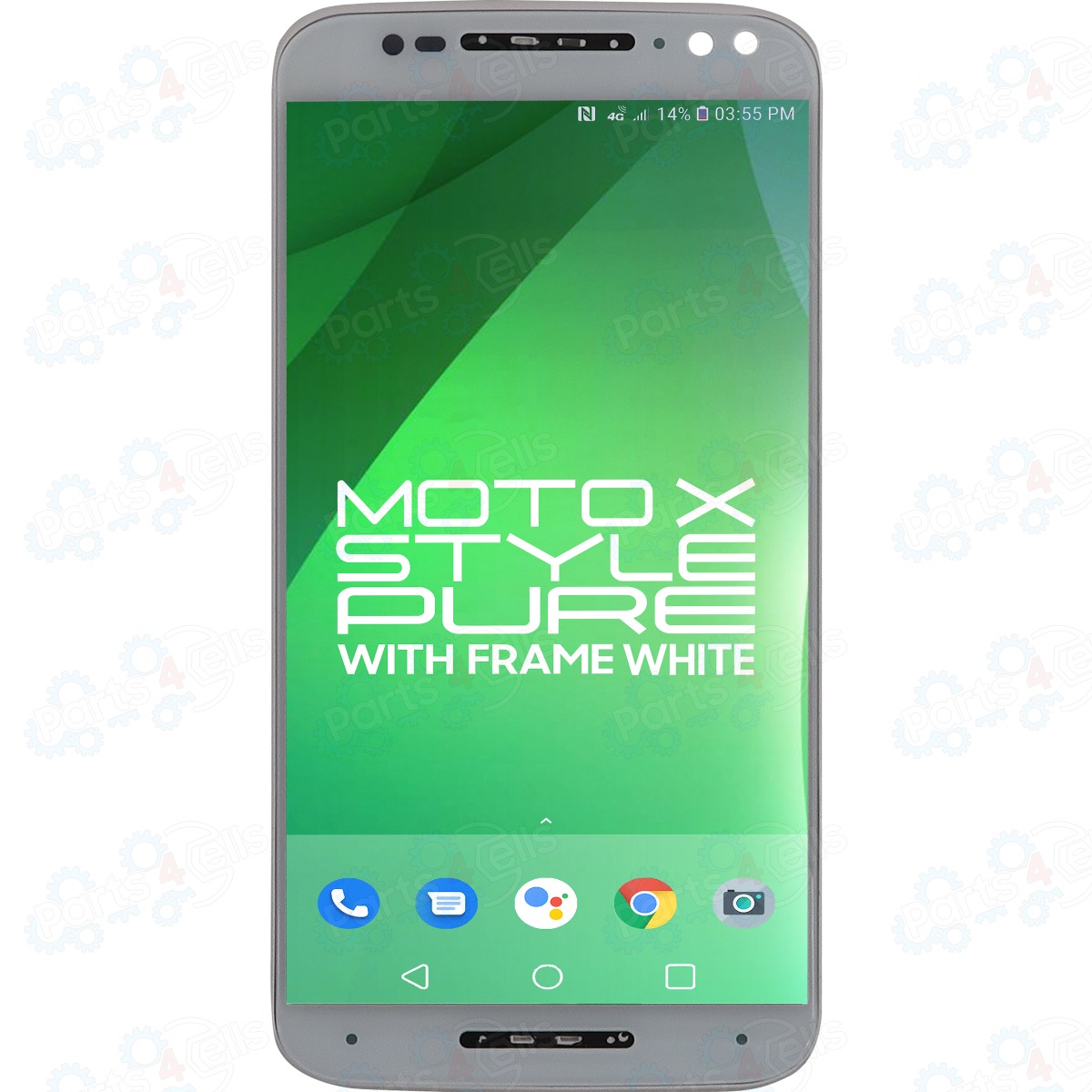

Motorola Moto X Style Pure Edition LCD with Touch + Frame White XT1575

Name: Motorola Moto X Style Pure Edition LCD with Touch + Frame White XT1575
Brand: Parts4Cells
SKU: 101362
Price: 12.00 USD
Availability: InStock

In stock

$12.00

Available In stock

Avail Qty : 6

Qty

Compatible :

Installation Steps

Installation Steps:

Power off your Motorola device before beginning.
Use the Suction Cup tool and a Phillips screwdriver to lift the screen safely.
- Place the suction cup near the home button and gently pull to create a small gap between the screen and the chassis.
- Use a Phillips screwdriver to remove any screws securing the display assembly to the frame, if applicable.
- Be cautious not to apply too much force to avoid damaging the screen further.
Insert a guitar pick to open the screen assembly.
- Slide a guitar pick into the gap created by the suction cup.
- Slowly glide the pick along the edge to release the adhesive securing the screen.
Disconnect the battery connector first to prevent electrical issues.
- Locate the battery connector, typically beneath a metal plate.
- Use a Phillips screwdriver to remove the screws securing the plate.
- Gently lift the connector using a plastic spudger or tweezers to avoid damaging it.
Disconnect the screen connectors to take out the damaged screen.
- Identify and disconnect the connectors attaching the screen assembly to the phone's logic board.
- These connectors are usually located near the top edge of the phone.
Test the new screen before installation.
- Carefully attach the connectors of the new screen to the logic board.
- Power on the Motorola device to ensure the new screen functions properly before proceeding.
Align and connect the new screen carefully.
- Place the new screen into position, ensuring it lines up correctly with the chassis.
- Connect the screen connectors securely to the logic board.
Reconnect the battery connector securely.
- Carefully reattach the battery connector to the logic board.
- Replace the metal plate and screws to secure the connector in place.
Gently close the screen assembly with even pressure.
- Press along the edges of the screen to ensure the adhesive bonds securely.
- Apply even pressure to ensure the screen sits flush with the chassis.
